Device to Cloud Command Line Interface Client Domain Model
Overview
In this chapter you will learn about the client sided Device to Cloud (D2C) domain model and why it is introduced by the command line tool d2c.

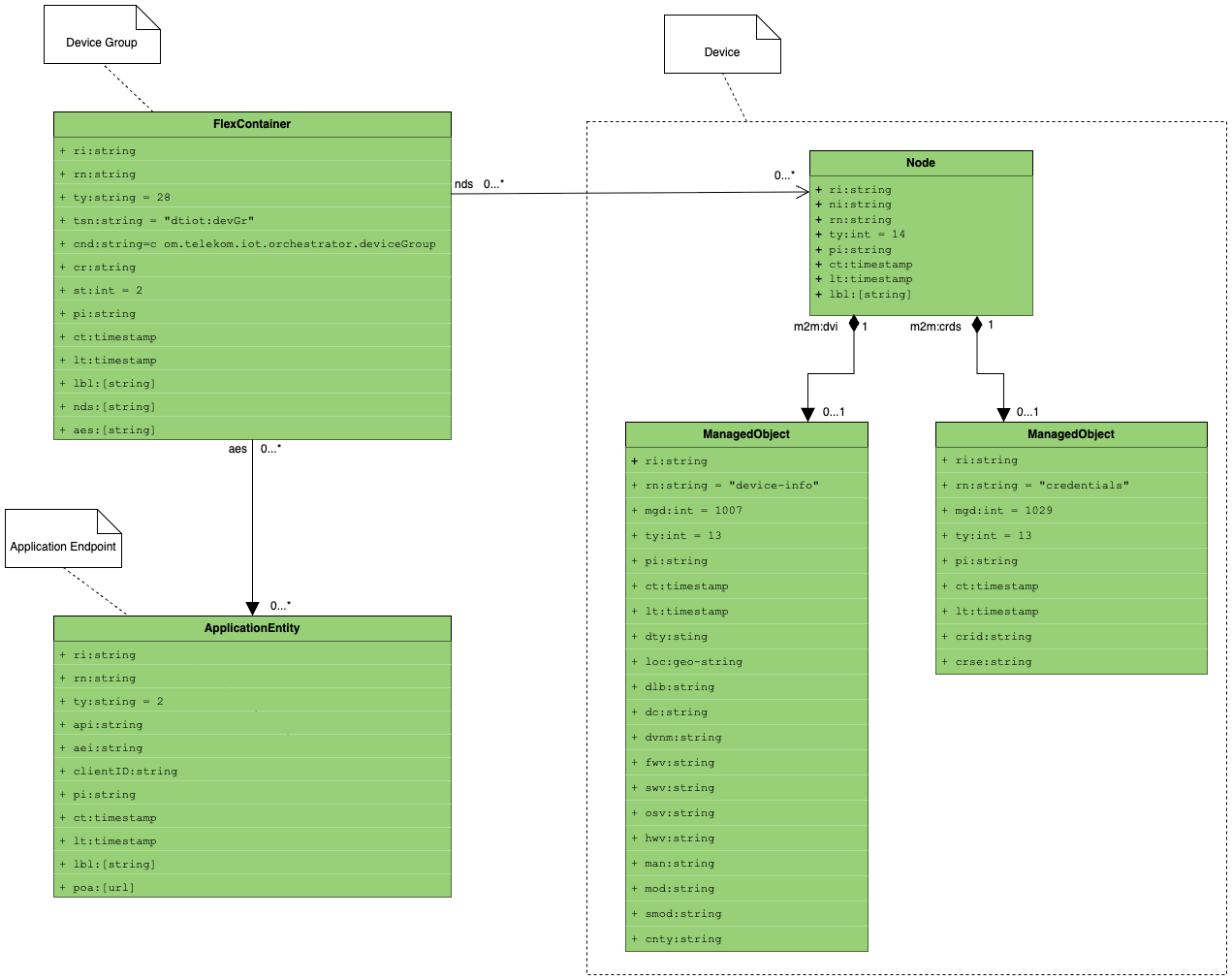

has been implemented on the basis of Device Management Orchestrator (DMO) and its API. Out of this reason the model entities Device, Device Group and Application are composed by the oneM2M model as shown in the following diagram.
As you can see the oneM2M model is not intuitive and simple. We think it should be simplified to make life easy when you have to deal with it on the command line in your daily work. Out of this reason d2c introduces a client sided domain model and a related sets of d2c sub commands by which the handling of Devices, Device Groups and Applications is much easier.
In the following the domain model of those three entities are described. To learn about the corresponding d2c commands please refer to
Device Domain Model
- JSON Sample
- Description
{
"id": "67e67fefe9b543a53b197f74",
"name": "358878080180968",
"creationTime": "2025-03-28T10:54:39",
"lastModificationTime": "2025-05-21T10:36:56",
"iccid": "282828282828",
"deviceType": "Demo",
"deviceName": "",
"location": "geo:-49.0,109.0",
"label": "",
"description": null,
"firmwareVersion": "1.0.0",
"softwareVersion": "1.0.2",
"osVersion": "",
"hardwareVersion": "1.0.1",
"protocols": [
"LWM2M"
],
"manufacturer": "Leshan Demo Device",
"model": "Model 500",
"subModel": "",
"country": "",
"uplinkProperties": {
"Address": "Landgrabenweg 149, 53227 Bonn"
},
"deviceProperties": {
"decoding-selector": "IM Building"
},
"credentialsId": "358878080180968",
"credentialsSecret": "***",
"labels": {
"profile": "SCS-LwM2M",
"ICCID": "282828282828",
"d2c": "1.0",
"UplinkProperty_Address": "Landgrabenweg 149, 53227 Bonn"
}
}
| Attribute | Description | Type |
|---|---|---|
| id | Unique id of the oneM2M node object which composes the device. | string |
| creationTime | ISO timestamp when the oneM2m node object has been created. | ISO timestamp |
| lastModificationTime | ISO timestamp when the oneM2m node object has been modified the last time. | ISO timestamp |
| name | Uniqueu name of the oneM2M node object. The name attribute is used as uniqueu serial number or IMEI of the device and is assinged during device creation. | string |
| manufacturer | Manufacturer of the device. Can be defined only during device creation. | string |
| model | Model of the device. Can be defined only during device creation. | string |
| subModel | Sub model of the device. Can be defined only during device creation. | string |
| firmwareVersion | Firmware version of the device. | string |
| softwareVersion | Software version of the device. | string |
| osVersion | Operating system version of the device. | string |
| hardwareVersion | Hardware version of the device. | string |
| country | Country code of the device. | string |
| deviceType | An optional type descriptor for the device. | string |
| deviceName | An optional additional name for the device. | string |
| description | An optional additional description for the device. | string |
| label | An optional additional label for the device. | string |
| protocols | List of protocols which are supported by the device. | Array of strings |
| location | The geo location of the device. | geo location according to RFC 5870 https://en.wikipedia.org/wiki/Geo_URI_scheme |
| uplinkProperties | Key/value pairs which are passed along with each uplink message to the subscribbing application. | key/value pairs |
| deviceProperties | Addtional Key/value pairs of your joice. | key/value pairs |
| iccid | In case the device uses cellular connectivity the ICCID of the SIM card | string |
| credentialsId | Id of device authentication token such as PSK | string |
| credentialsSecret | Secret of device authentication token such as PSK | string |
| labels | Internal labels of the corresponding onem2m node object. Various elements such as device or uplink properties are stored in the internal labels. Never modify the labels directyl without a deep understanding of applcation. | list of strings |
Application Domain Model
- JSON Sample
- Description
{
"id": "6835719d611aed7aa2d99f36",
"name": "My-Message-Monitor",
"description": "Prints messages to stdout",
"type": "webHook",
"creationTime": "2025-05-27T08:02:37",
"lastModificationTime": "2025-05-27T08:02:38",
"urls": [
"https://api.scs.iot.telekom.com/message-monitor"
],
"connectionProperties":{
"Authorization": "cm9sYW5kLmJhbGRpbkB0ZWxla",
"loglevel": "debug"
},
"labels": {
"applicationType": "WebHook",
"d2c": 1.0
},
}
| Attribute | Description | Type |
|---|---|---|
| id | Unique id of the corresponding oneM2M application entity. | string |
| creationTime | ISO timestamp when the oneM2m application entity has been created. | ISO timestamp |
| lastModificationTime | ISO timestamp when the oneM2m application entity has been modified the last time. | ISO timestamp |
| name | Uniqueu name of the correspondiing oneM2M application entity. | string |
| description | Description of the application | string |
| type | Type of the application. Currently only webHook is supported. | string |
| urls | List of URLs to which the uplink messages of the devices shall be forwarded to. | List of URLs |
| connectionProperties | Any number of key/value properties to configure the connection. In case of webHook this are the header fields. | key/value pairs |
| labels | Internal labels of the corresponding onem2m application object. Never modify the labels directyl without a deep understanding of applcation. | list of strings |
Device Group Domain Model
- JSON Sample
- Description
{
"id": "68357993e027596a4cbeb7d9",
"name": "My-Message-Monitor Device Group",
"description": "This is a description",
"creationTime": "2025-05-27T08:36:35",
"lastModificationTime": "2025-05-27T08:36:41",
"devices": [
"358878080180968",
"995532951141026"
],
"devicesCount": 2,
"applications": [
"My-Message-Monitor"
],
"applicationsCount": 1,
"labels": {
"d2c": "1.0",
}
}
| Attribute | Description | Type |
|---|---|---|
| id | Unique id of the corresponding oneM2M object. | string |
| creationTime | ISO timestamp when the oneM2m object has been created. | ISO timestamp |
| lastModificationTime | ISO timestamp when the oneM2m object has been modified the last time. | ISO timestamp |
| name | Uniqueu name of the corresponding oneM2M object. | string |
| description | Description of the device group | string |
| devices | List of device names which belong to the device group. | List of string |
| devicesCount | Number of devices in the device group. | integer |
| applications | List of application names to which every uplink message of every device in the group shall be forwarded to. By having multiple applications in the group you can implement uplink message replication. | List of string |
| applicationsCount | Number of applications in the device group. | integer |
| labels | Internal labels of the corresponding onem2m device group object. Never modify the labels directyl without a deep understanding of applcation. | list of strings |
